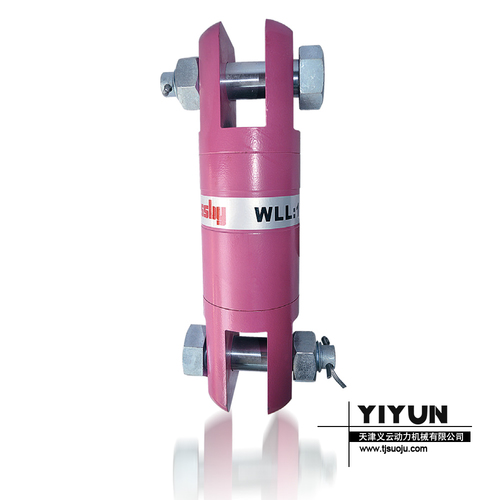

Swivels Angular Contact Bearing Swivels-Jaw to Jaw
- Minimum Order Quantity
- 1
- Unit of Measure
- Piece/Pieces
- Price
- 11 USD ($)
- Usage
- wire rope
- Lifting Capacity
- 5 Tonne
- Max. Lifting Load
- 60 Tonne
- Max. Lifting Height
- 33 Millimeter (mm)
- Power Source
- Manual
- Feature
- swivel
- Attributes
- Easy To Operate
Swivels Angular Contact Bearing Swivels-Jaw to Jaw
Description:
Wide Range of Contact Bearing Swivel products available;
Capacity：0.75 through 60Tonnes;
Wire Rope Size：3MM through 38MM；
Other types and capacities available to meet your requirement;
All swivels individually prof tested with certification;
Zinc plated or epoxy coating for anti-corrosion and good look.
Applications:
Suitable for frequent rotation under load.
Used with the recommended wire rope.
Item No. | WLL | B | K | L | C | A | D | G | H | U.W |
YD-086-007 | 0.75 | 31 | 102 | 128 | 13 | 15 | 10 | 6 | 22 | 0.5 |
YD-086-015 | 1.5 | 40 | 112 | 152 | 20 | 18 | 13 | 8 | 26 | 0.9 |
YD-086-030 | 3 | 53 | 158 | 208 | 25 | 23 | 19 | 10 | 32 | 2.3 |
YD-086-050 | 5 | 67 | 205 | 267 | 31 | 32 | 22 | 14 | 37 | 4.4 |
YD-086-085 | 8.5 | 78 | 258 | 326 | 34 | 40 | 30 | 14 | 54 | 7.6 |
YD-086-100 | 10 | 106 | 314 | 410 | 48 | 42 | 38 | 25 | 54 | 19.5 |
YD-086-150 | 15 | 119 | 332 | 436 | 52 | 48 | 38 | 25 | 57 | 21.7 |
YD-086-250 | 25 | 137 | 405 | 535 | 65 | 62 | 51 | 30 | 70 | 39.5 |
YD-086-350 | 35 | 154 | 428 | 558 | 65 | 62 | 51 | 33 | 70 | 46.2 |
YD-086-600 | 60 | 270 | 670 | 890 | 115 | 100 | 80 | 75 | 75 | 50 |
Competitive Advantage:
Swivels are manufactured with grease fittings for superior performance.
Swivels are designed for low starting torque and high rotation speed.
Maximum Ultimate Load is 4 times the Working Load Limit;
Maximum Proof Load is 2 times of the Working Load Limit.
- FOB Port
- tianjin
- Payment Terms
- Western Union, Cheque
- Supply Ability
- 1299 Per Day
- Delivery Time
- 7 Days
- Sample Available
- Yes
- Sample Policy
- Within a certain price range free samples are available
- Packaging Details
- Outer carton with inner packing: PP bag or rubble bag with soft material.
- Main Export Market(s)
- Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
- Certifications
- SGS certificate
|
 |
